$3,199.00 CAD
Options:

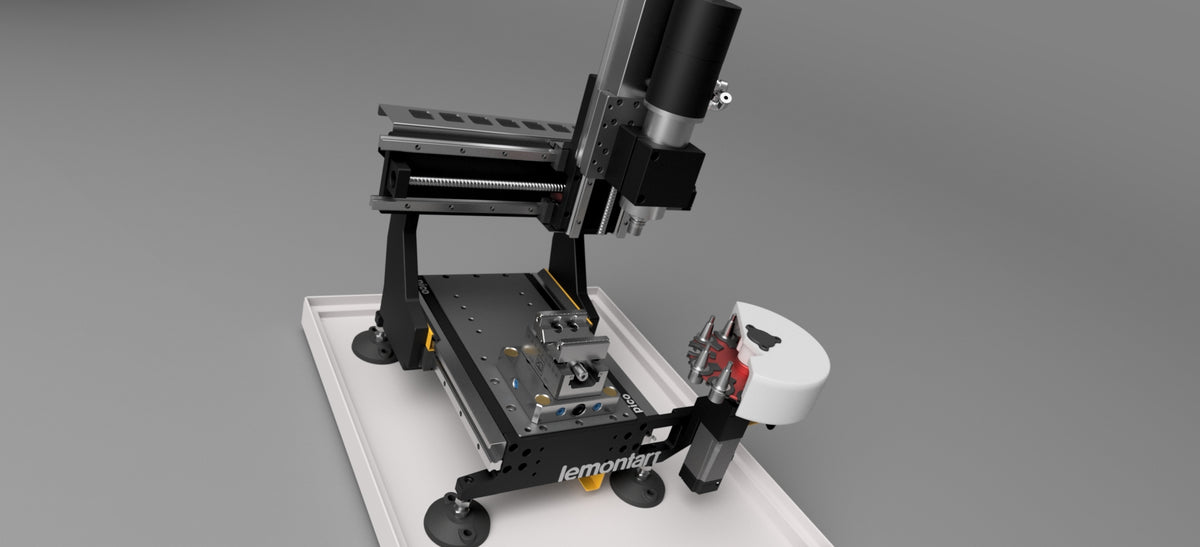

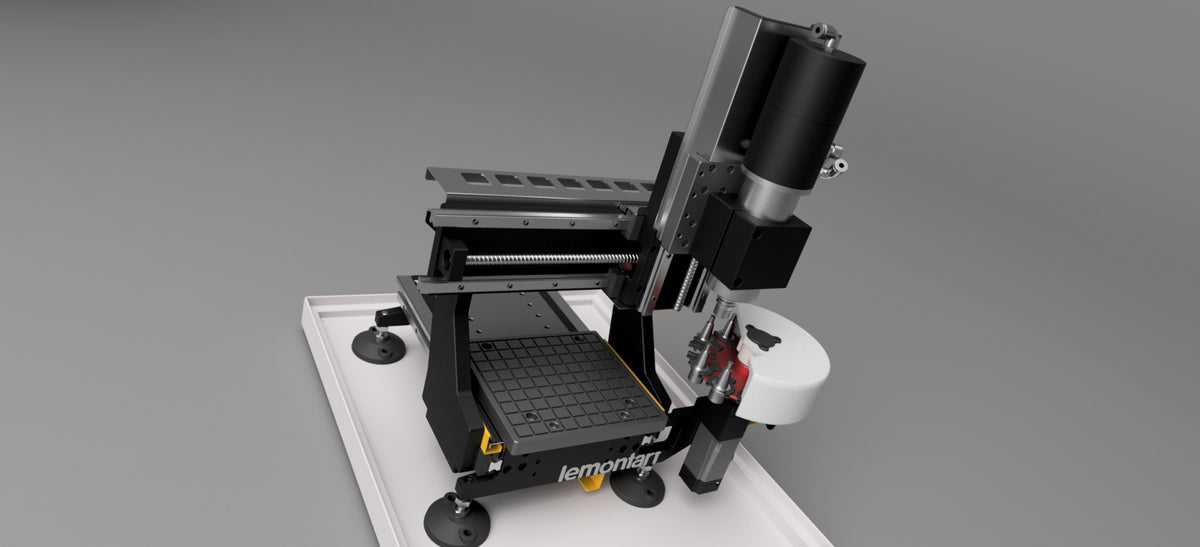

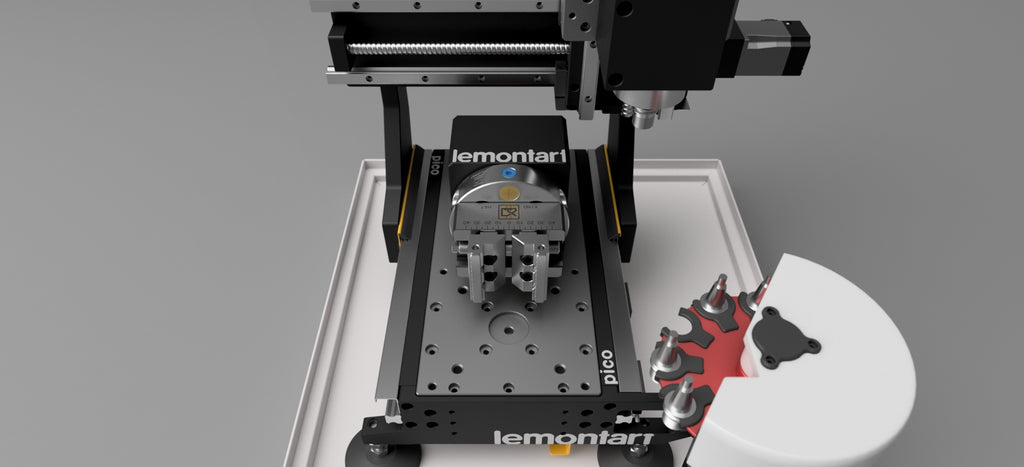

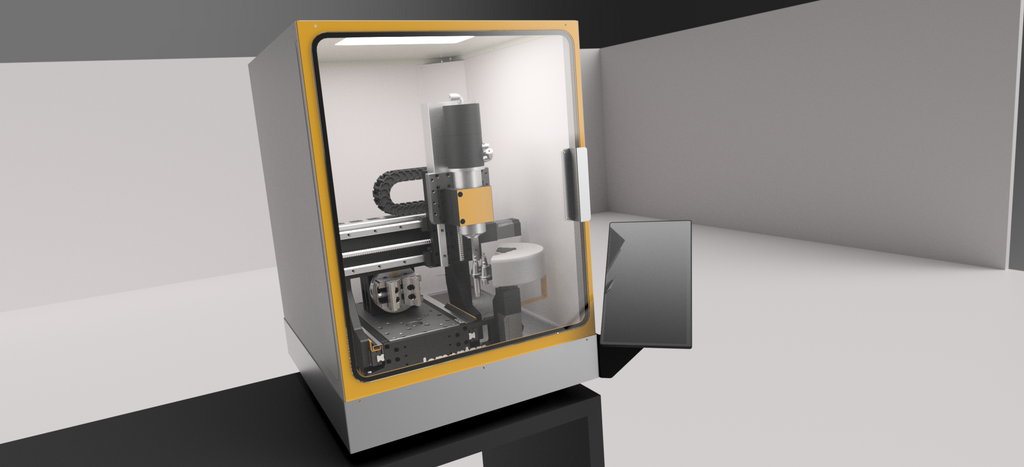

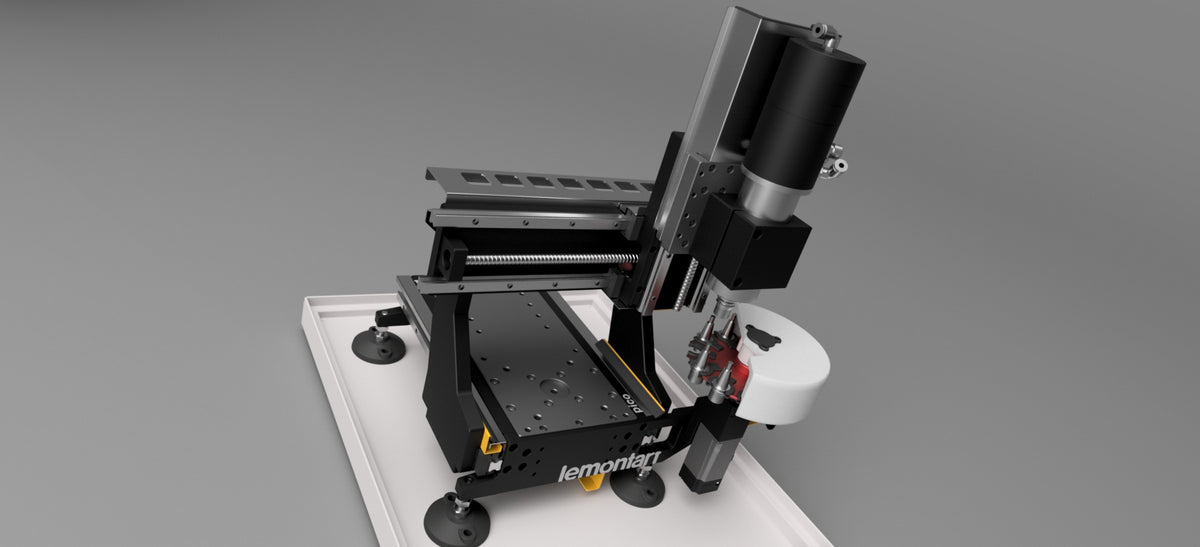

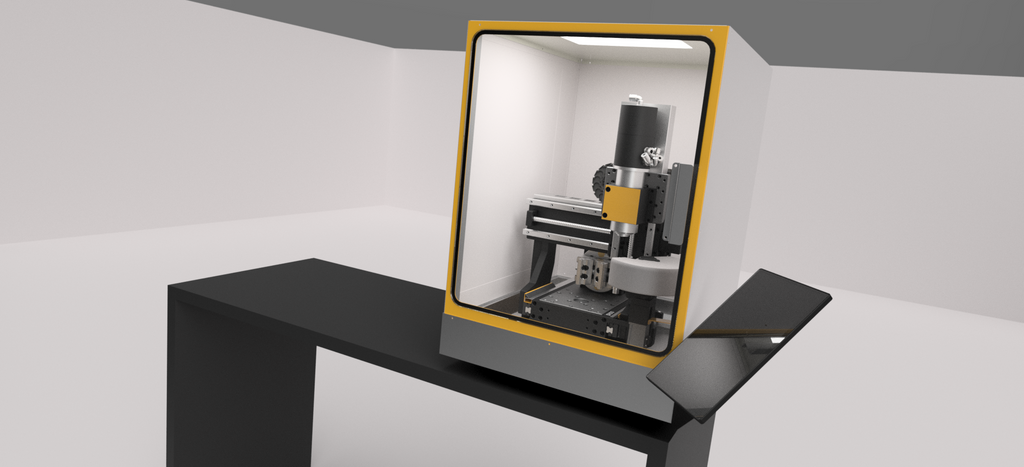

lemontart is a high performance CNC router aimed at high speed aluminium, plastic, fine hardwood cutting as well as light duty work in steel, stainless and titanium. It has a unique focus on accessibility, reparability, and fostering 3rd party accessories and modification.
COMING IN NOVEMBER From 3199 cdn for the base frame kit (about 2299 usd or 1999 euros depending on exchange rate)
240mm x 200mm x 100mm travel
62mm spindle mount
A full range of accessories and options
The same performance and quality you expect from lemontart, just a wee bit smaller.
Please join the discord or contact us with any questions.
Note that the price does not include shipping or taxes or tariffs. These will be added to the price in the shopping cart where applicable.
lemontart machine frame kits are made to order, they cannot be returned, know what you are buying before mashing go.
| Specification | metric | inch |
|---|---|---|
| X travel | 330mm | 13" |
| Y travel | 280mm | 11" |
| Z travel | 130mm | 5.1" |
| gantry clearance | 133mm | 5.2" |
| table dimensions | 242mm x 430m | 9.5" x 16.9" |
| clearance between gantry uprights | 362mm | 14.2" |
| ball screw | precision ground 1610 grade C5 | light preload |
| linear guides | 15mm X and Z, 20mm Y | heavy preload |
| zero point tooling positions | 2 | front left | front right |
| rotary and index block positions | 3 | front middle | back middle | back right |
| front travel overhang | 38mm | 1.5" |
| limit and home switch mounting | M8 x 6pc | one home and one limit switch per axis |
| materials | main frame - 6061 aluminium | table - 4140 annealed |
| servo mounts | 60mm frame, 14mm shaft | 200w-400w recommended with brake on Z |
| maximum axis speed | 36000mm/m | 1417ipm |
| spindle sizes | 62mm/80mm/block | clamps supplied separately |
| maximum spindle weight | 10kg, under 8kg preferred | 22lbs, under 17lbs preferred |
| applicable spindle tapers | ER, HSK25E, ISO20, ISO10, direct collet | |
| maximum recommended spindle power | 4kw | 5.4hp |
| bare machine frame weight | approximately 70kg | approximately 155lbs |
