$499.00 CAD
Prices are in Canadian dollars, approximate US dollar conversion is $355.

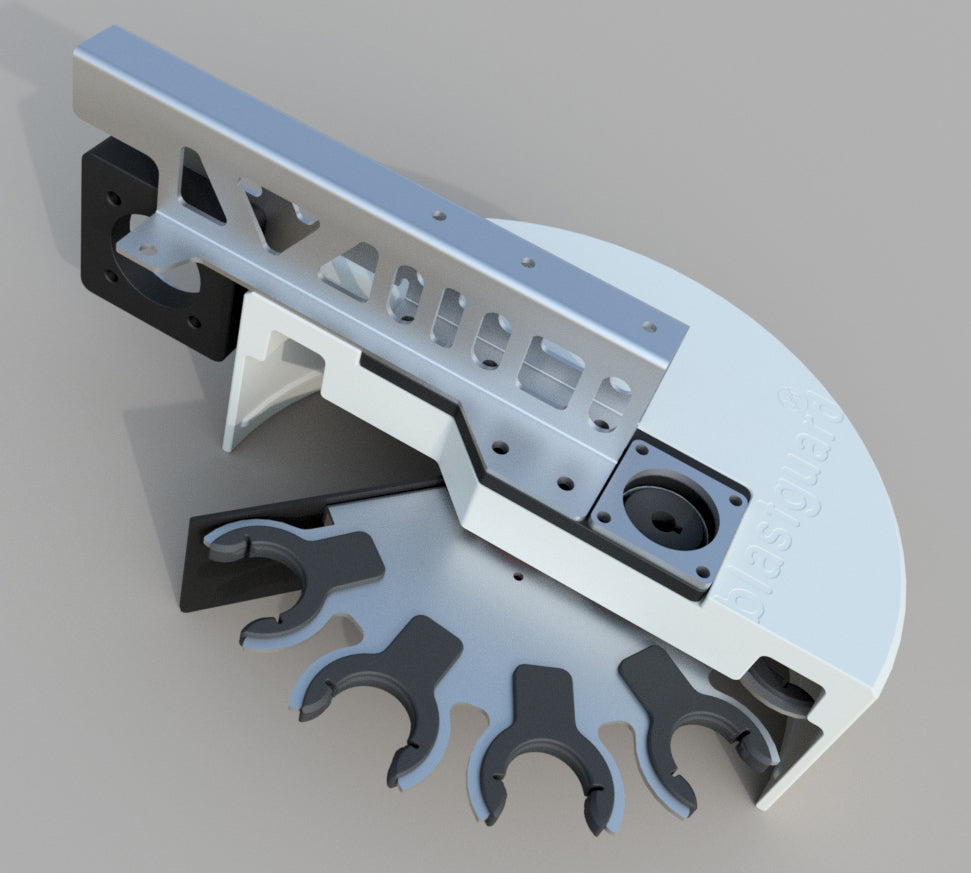

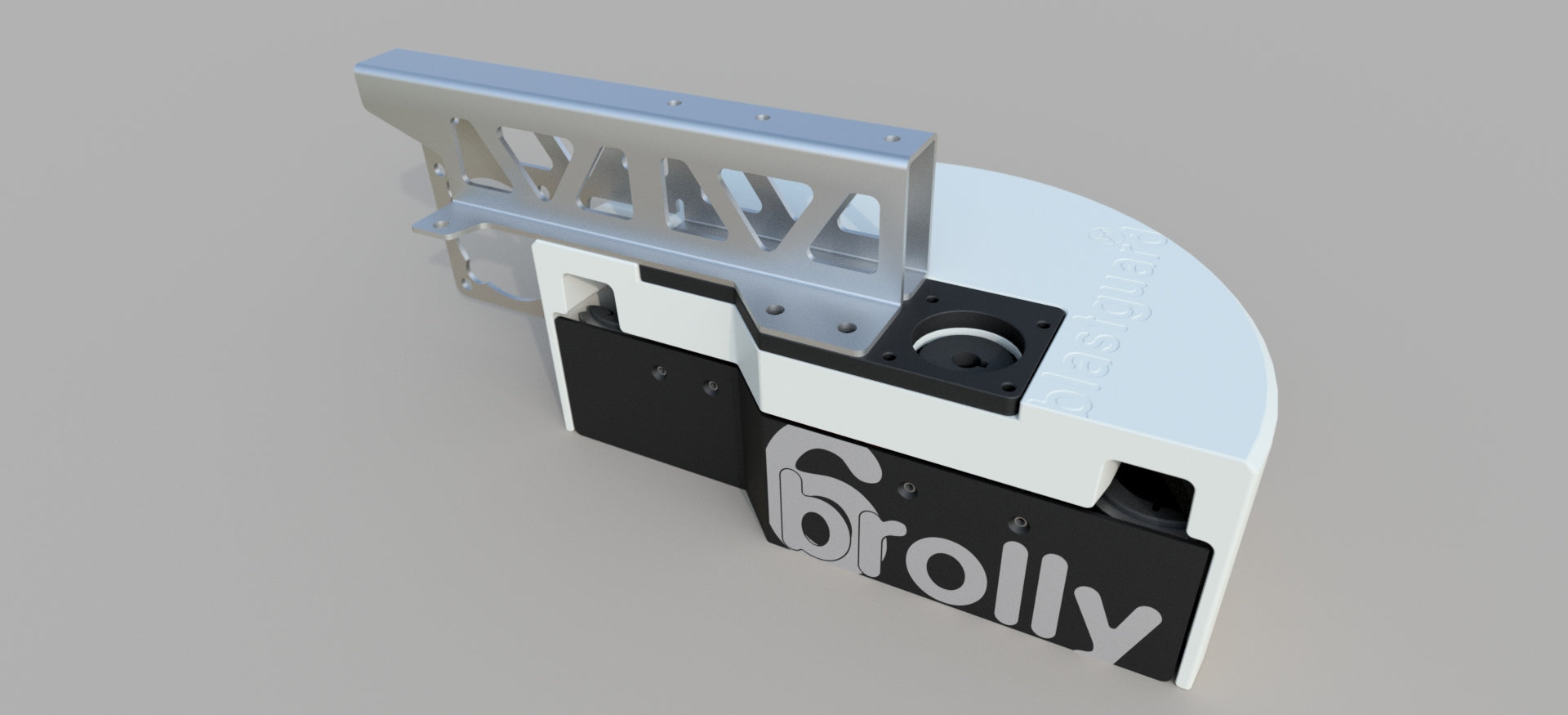

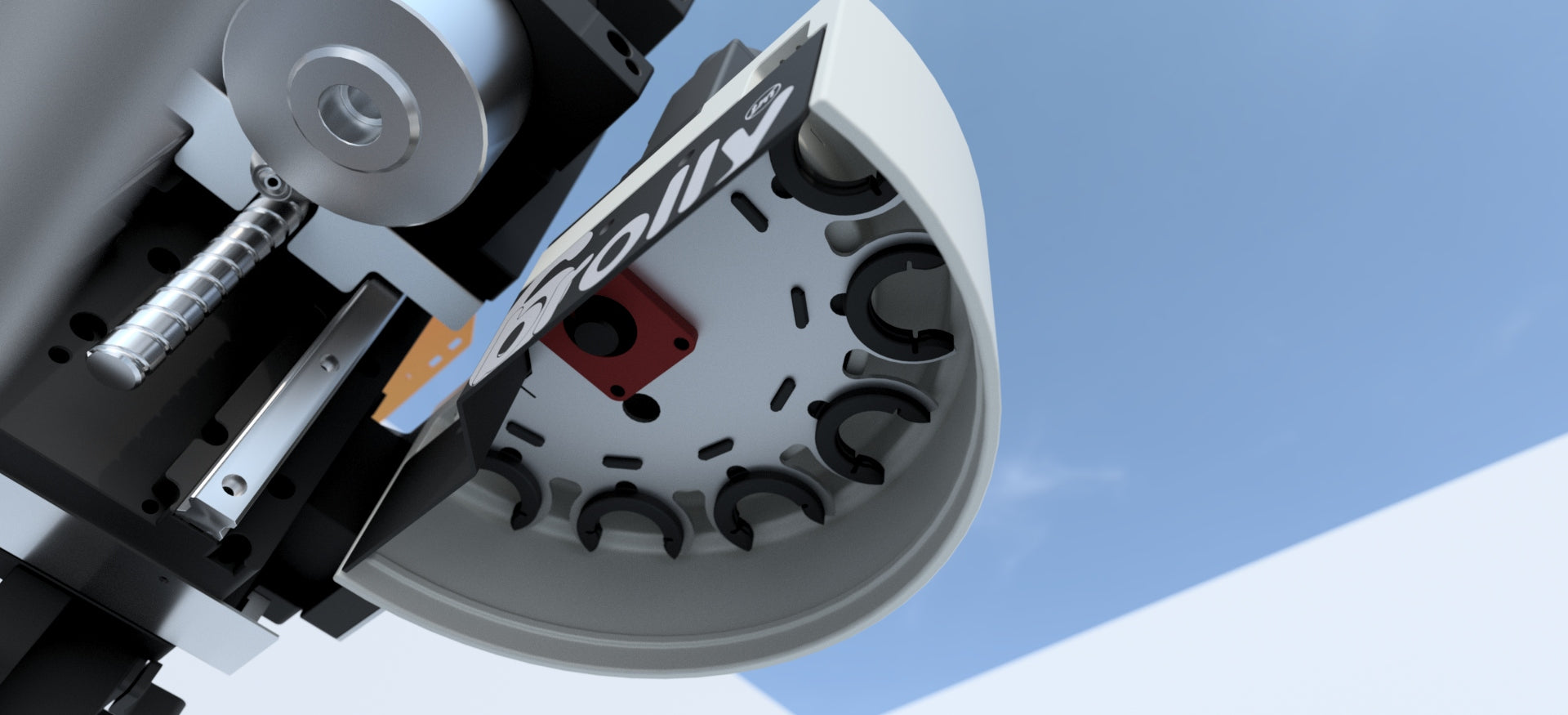

COMING SOON - The lemontart brolly6 automatic tool changer. 6 tools in either HSK25e or ISO20 formats. Self assembly kit, requires a 100w 40mm ac servo.
DETAILED SPECS COMING SOON
lemontart is a high performance CNC router aimed at high speed aluminium, plastic, fine hardwood cutting as well as light duty work in steel, stainless and titanium. It has a unique focus on accessibility, reparability, and fostering 3rd party accessories and modification.
This listing is for the lemontart brolly6 automatic tool changer. You must assemble this kit yourself and add a 100w 40mm frame ac servo.
Shipping will take 3-4 weeks.
WARNING, this listing is NOT for USA customers. USA customers have their own listing that includes tariffs. If you are not seeing the USA listing, please go HERE.
Note that the price includes shipping costs to most countries, but you will be responsible for tariffs and taxes in your country on delivery. If you live outside of the EU, North America, Japan, Aus and NZ please contact us prior to checking out to ensure that shipping is covered.
lemontart machine components and kits are made to order, they cannot be returned, know what you are buying before mashing go.
You may also like
| Specification | metric | inch |
|---|---|---|
| X travel | 330mm | 13" |
| Y travel | 280mm | 11" |
| Z travel | 130mm | 5.1" |
| gantry clearance | 133mm | 5.2" |
| table dimensions | 242mm x 430m | 9.5" x 16.9" |
| clearance between gantry uprights | 362mm | 14.2" |
| ball screw | precision ground 1610 grade C5 | light preload |
| linear guides | 15mm X and Z, 20mm Y | heavy preload |
| zero point tooling positions | 2 | front left | front right |
| rotary and index block positions | 3 | front middle | back middle | back right |
| front travel overhang | 38mm | 1.5" |
| limit and home switch mounting | M8 x 6pc | one home and one limit switch per axis |
| materials | main frame - 6061 aluminium | table - 4140 annealed |
| servo mounts | 60mm frame, 14mm shaft | 200w-400w recommended with brake on Z |
| maximum axis speed | 36000mm/m | 1417ipm |
| spindle sizes | 62mm/80mm/block | clamps supplied separately |
| maximum spindle weight | 10kg, under 8kg preferred | 22lbs, under 17lbs preferred |
| applicable spindle tapers | ER, HSK25E, ISO20, ISO10, direct collet | |
| maximum recommended spindle power | 4kw | 5.4hp |
| bare machine frame weight | approximately 70kg | approximately 155lbs |
